YLP-MDF-152 – Laser Marking Machine


Features:

-Small and compact in size, air cooling
-Fiber output, it is flexible to apply, the system is easy to make 3D processing
-Good beam quality, TEM00 single-module output, after collimating diameter is 10mm, M2<1.8, divergence angle of beam is 0.24mrad

Application:

The YLP-MDF-152 laser marker is mainly applied on the sample which is not flat, such as column, sphere, irregular surface, smoothness and fineness such as clock and watch industry, jewelry industry, mould industry and bitmap proce

Model YLP-MDF-152
Laser output power 20 / 30 / 50W
Beam quality M2 <1.3
Marking area 160x160mm
Working distance 197±2mm
Max surface height difference ±20mm
Min. character size 0.5mm
Pulse Repetion 1<F<1000KHz
Cooling method Air cooling
Power consumption 0.5KW
Power supply 220V
Dimensions (LxWxH) 840x800x1400mm
weight 260KG

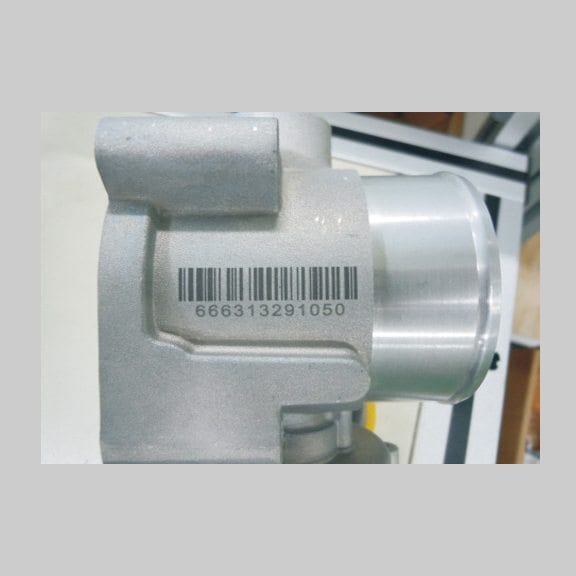

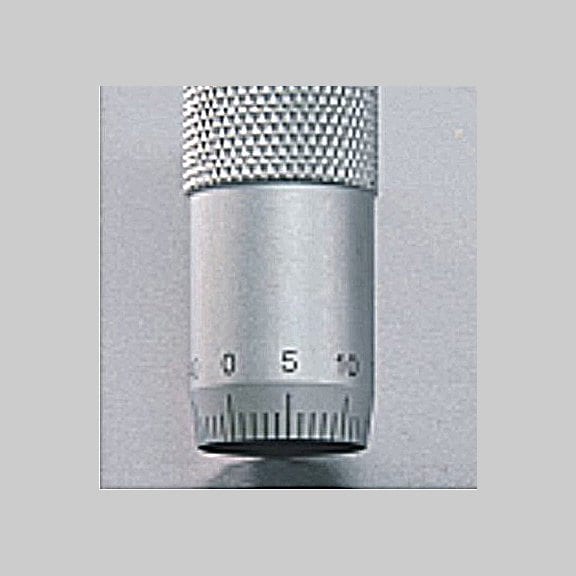

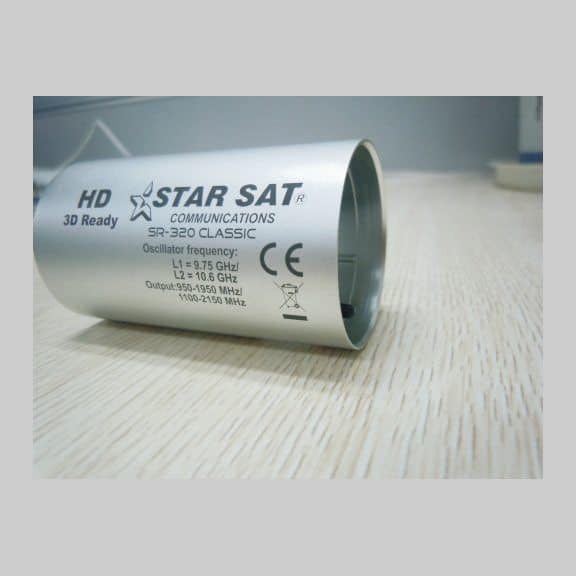

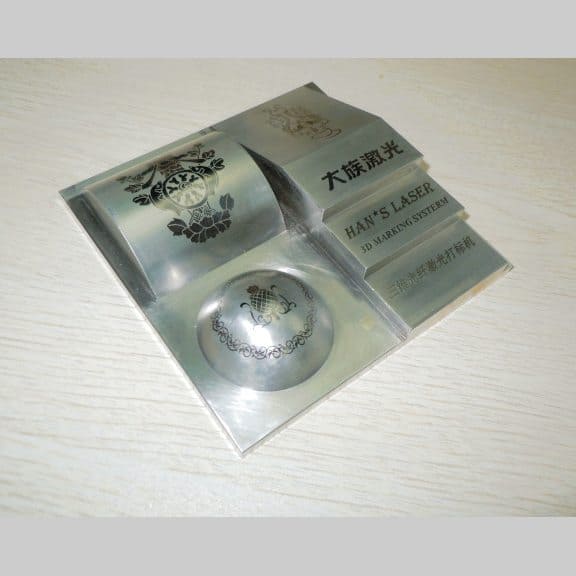

YLP-MDF-152 – Marking Samples

Aplications:

  • Consumer Electronics
  • Metal Parts
